可视化图片

catkin新建工程

 mkdir -p rosopencv/srccd rosopencv/srccatkin_create_pkg rosopencv sensor_msgs cv_bridge roscpp std_msgs image_transportcd ..catkin_makesource ./devel/setup.bash

主函数代码

#include
#include
#include
#include #include int main(int argc, char** argv)
{ros::init(argc, argv, "image_publisher");ros::NodeHandle nh;image_transport::ImageTransport it(nh);image_transport::Publisher pub = it.advertise("camera/image", 1);cv::Mat image = cv::imread("/home/topeet/test.jpg", CV_LOAD_IMAGE_COLOR);if(image.empty()){printf("open error\n");}sensor_msgs::ImagePtr msg = cv_bridge::CvImage(std_msgs::Header(), "bgr8", image).toImageMsg();ros::Rate loop_rate(5);while (nh.ok()) {pub.publish(msg);ros::spinOnce();loop_rate.sleep();}
}

cmakelists.txt

在功能包中的cmakelists.txt添加如下代码

set(OpenCV_DIR /usr/local/share/OpenCV)
message(STATUS "    version: ${OpenCV_VERSION}")
find_package(OpenCV REQUIRED)
add_executable(rosopencv src/rosopencv.cpp)
include_directories(${OpenCV_INCLUDE_DIRS})
target_link_libraries(cmaketest ${OpenCV_LIBS})

编译和运行

cd ~/dev/workspace/rosopencv
catkin_make

在第一个terminal输入

rosrun rosopencv rosopencv

在第二个terminal输入

rosrun rosopencv rosopencv

在rviz中显示

rosrun rviz rviz

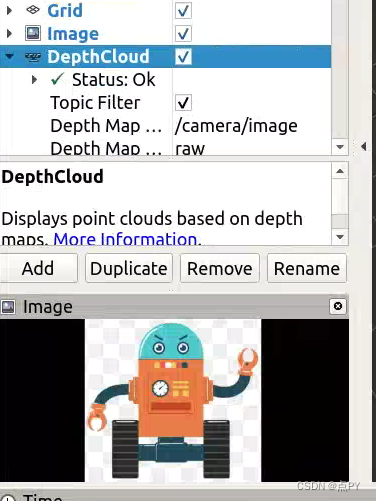

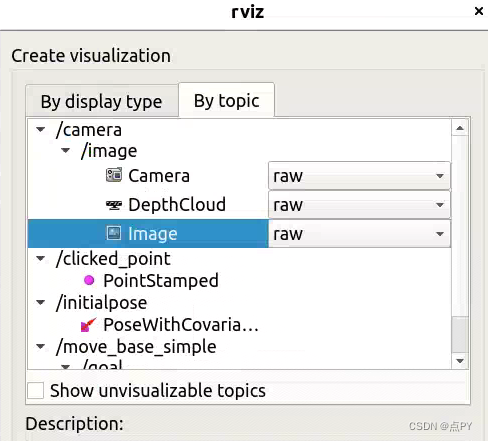

左下角add，按照topic进行添加操作

可视化realsense

安装realsense SDK

sudo apt-key adv --keyserver keys.gnupg.net --recv-key F6E65AC044F831AC80A06380C8B3A55A6F3EFCDE || sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-key F6E65AC044F831AC80A06380C8B3A55A6F3EFCDE
sudo add-apt-repository "deb http://realsense-hw-public.s3.amazonaws.com/Debian/apt-repo bionic main" -u
sudo apt-get install librealsense2-dkms
sudo apt-get install librealsense2-utils
sudo apt-get install librealsense2-dev
sudo apt-get install librealsense2-dbg# 运行可视化界面
realsense-viewer

在ROS中安装realsense

mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/src/
git clone https://github.com/IntelRealSense/realsense-ros.git
cd realsense-ros/
git checkout `git tag | sort -V | grep -P "^2.\d+\.\d+" | tail -1`
cd ..
catkin_init_workspace
cd ..
catkin_make clean
catkin_make -DCATKIN_ENABLE_TESTING=False -DCMAKE_BUILD_TYPE=Release
catkin_make install
#添加环境变量
echo "source ~/catkin_ws/devel/setup.bash" >> ~/.bashrc
source ~/.bashrc
# 运行
roslaunch realsense2_camera rs_camera.launch

在rviz中显示

在terminal输入

rviz

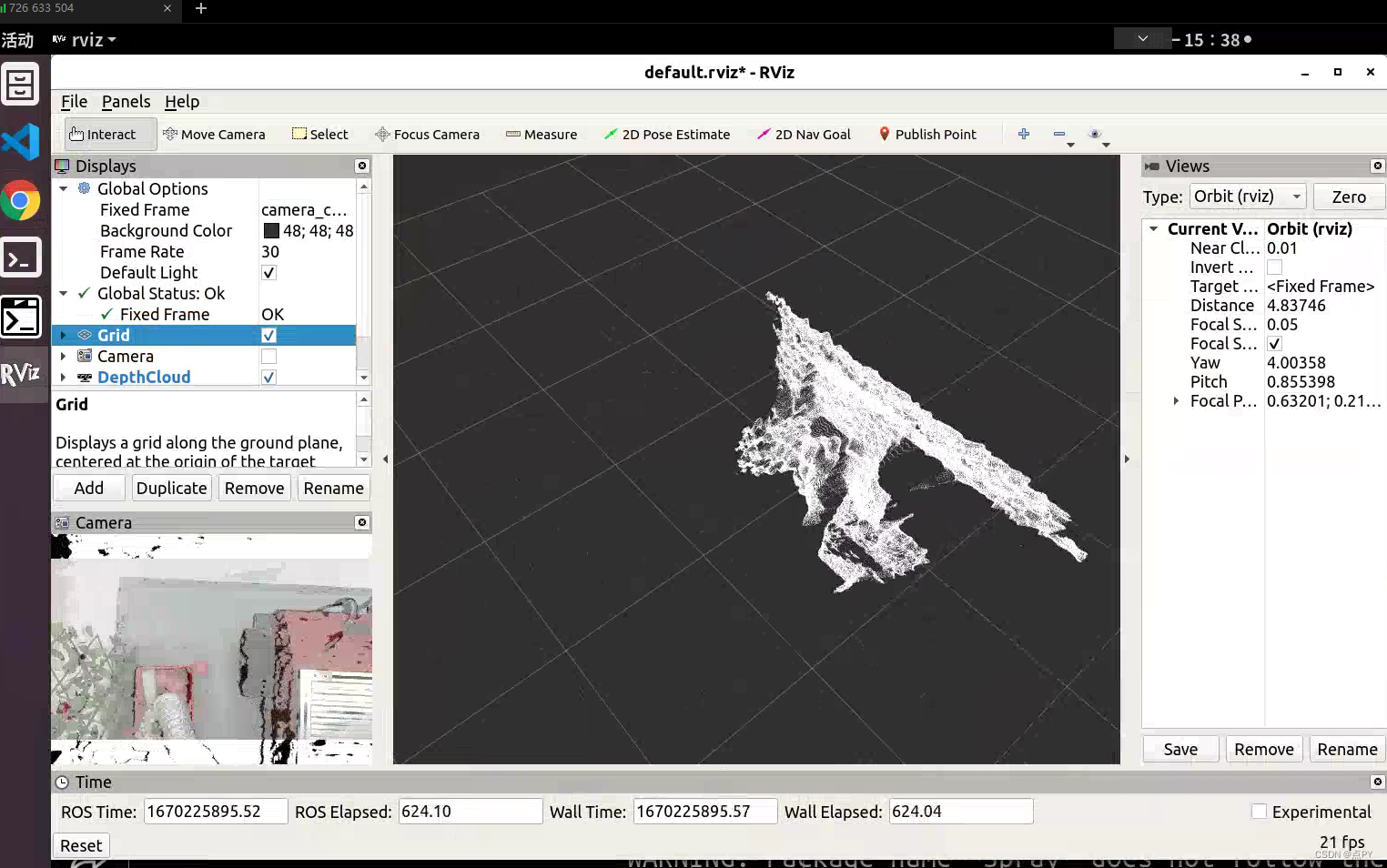

添加你感兴趣的topic
这里我可视化了深度图和RGB

参考
