裁剪是为了从图像中删除所有不需要的物体或区域。甚至突出显示图像的特定功能。

使用OpenCV裁剪没有特定的功能，NumPy数组切片是工作。读取的每个图像都存储在2D数组中（对于每个颜色通道）。只需指定要裁剪区域的高度和宽度（以像素为单位），就可以完成

使用OpenCV裁剪图像

• 1.使用OpenCV裁剪
• 2.使用裁剪功能对图像进行划分

1.使用OpenCV裁剪

以下代码片段展示了如何使用Python和C++裁剪图像。在例子的进一步，您将详细了解这些。
Python

# Import packages
import cv2
import numpy as npimg = cv2.imread('test.jpg')
print(img.shape) # Print image shape
cv2.imshow("original", img)# Cropping an image
cropped_image = img[400:1200, 350:700]# Display cropped image
cv2.imshow("cropped", cropped_image)# Save the cropped image
cv2.imwrite("Cropped Image.jpg", cropped_image)cv2.waitKey(0)
cv2.destroyAllWindows()

C++

// Include Libraries
#include
#include// Namespace nullifies the use of cv::function();
using namespace std;
using namespace cv;int main()
{// Read imageMat img = imread("test.jpg");cout << "Width : " << img.size().width << endl;cout << "Height: " << img.size().height << endl;cout<<"Channels: :"<< img.channels() << endl;// Crop imageMat cropped_image = img(Range(400,1200), Range(350,700));//display imageimshow(" Original Image", img);imshow("Cropped Image", cropped_image);//Save the cropped Imageimwrite("Cropped Image.jpg", cropped_image);// 0 means loop infinitelywaitKey(0);destroyAllWindows();return 0;
}

上面的代码读取并显示图像及其尺寸。尺寸不仅包括二维矩阵的宽度和高度，还包括通道的数量（例如，RGB图像有3个通道——红色、绿色和蓝色）。

让我们尝试裁剪图像中包含美女的部分。

Python

cropped_image = img[400:1200, 350:700] # Slicing to crop the image# Display the cropped image
cv2.imshow("cropped", cropped_image)
cv2.waitKey(0)
cv2.destroyAllWindows()

C++

Mat crop = img(Range(400,1200),Range(350,700)); // Slicing to crop the image// Display the cropped image
imshow("Cropped Image", crop);waitKey(0);
destroyAllWindows();
return 0;

在Python中，您可以使用与NumPy数组切片相同的方法裁剪图像。要切片数组，您需要指定第一维和第二维的开始和结束索引。

• 第一个维度总是行数或图像的高度。
• 第二个维度是列数或图像的宽度。

如何剪切图像的NumPy数组？查看此示例中的语法：

cropped = img[start_row:end_row, start_col:end_col]

在C++中，我们使用Range()函数裁剪图像。

• Python同理一样，它也应用切片。
• 在这里，图像也按照上述相同的约定作为二维矩阵读取。

以下是裁剪图像的C++语法：

img(Range(start_row, end_row), Range(start_col, end_col))

2.使用裁剪功能对图像进行划分

在OpenCV中裁剪的一个实际应用可以是将图像划分为大小相同图像块。使用循环从图像中裁剪片段。首先从图像的形状中获取所需图像块的高度和宽度

Python

img =  cv2.imread("test_cropped.jpg")
image_copy = img.copy()
imgheight=img.shape[0]
imgwidth=img.shape[1]

C++

Mat img = imread("test_cropped.jpg");
Mat image_copy = img.clone();
int imgheight = img.rows;
int imgwidth = img.cols;

加载高度和宽度，以指定需要裁剪较小图像块的范围。为此，使用Python中的range()函数。现在，使用两个循环裁剪：

• 宽度范围
• 高度范围

已知原图像瘩高度宽度为(1350,1080),我们使用的图像块的高度和宽度分别为(270,216）。内外循环的步幅（我们在图像中移动的像素数）也就是划分下来，有25个图像块。（拼图一样）

Python

M = 216
N = 270
x1 = 0
y1 = 0for y in range(0, imgheight, M):for x in range(0, imgwidth, N):if (imgheight - y) < M or (imgwidth - x) < N:breaky1 = y + Mx1 = x + N# check whether the patch width or height exceeds the image width or heightif x1 >= imgwidth and y1 >= imgheight:x1 = imgwidth - 1y1 = imgheight - 1# Crop into patches of size MxNtiles = image_copy[y:y + M, x:x + N]# Save each patch into file directorycv2.imwrite(str(x) + '_' + str(y) + '.jpg', tiles)cv2.rectangle(img, (x, y), (x1, y1), (0, 255, 0), 1)elif y1 >= imgheight:  # when patch height exceeds the image heighty1 = imgheight - 1# Crop into patches of size MxNtiles = image_copy[y:y + M, x:x + N]# Save each patch into file directorycv2.imwrite(str(x) + '_' + str(y) + '.jpg', tiles)cv2.rectangle(img, (x, y), (x1, y1), (0, 255, 0), 1)elif x1 >= imgwidth:  # when patch width exceeds the image widthx1 = imgwidth - 1# Crop into patches of size MxNtiles = image_copy[y:y + M, x:x + N]# Save each patch into file directorycv2.imwrite(str(x) + '_' + str(y) + '.jpg', tiles)cv2.rectangle(img, (x, y), (x1, y1), (0, 255, 0), 1)else:# Crop into patches of size MxNtiles = image_copy[y:y + M, x:x + N]# Save each patch into file directorycv2.imwrite(str(x) + '_' + str(y) + '.jpg', tiles)cv2.rectangle(img, (x, y), (x1, y1), (0, 255, 0), 1)

C++

int M = 216;
int N = 270;int x1 = 0;
int y1 = 0;
for (int y = 0; yfor (int x = 0; xif ((imgheight - y) < M || (imgwidth - x) < N){break;}y1 = y + M;x1 = x + N;string a = to_string(x);string b = to_string(y);if (x1 >= imgwidth && y1 >= imgheight){x = imgwidth - 1;y = imgheight - 1;x1 = imgwidth - 1;y1 = imgheight - 1;// crop the patches of size MxNMat tiles = image_copy(Range(y, imgheight), Range(x, imgwidth));//save each patches into file directoryimwrite("saved_patches/tile" + a + '_' + b + ".jpg", tiles);  rectangle(img, Point(x,y), Point(x1,y1), Scalar(0,255,0), 1);    }else if (y1 >= imgheight){y = imgheight - 1;y1 = imgheight - 1;// crop the patches of size MxNMat tiles = image_copy(Range(y, imgheight), Range(x, x+N));//save each patches into file directoryimwrite("saved_patches/tile" + a + '_' + b + ".jpg", tiles);  rectangle(img, Point(x,y), Point(x1,y1), Scalar(0,255,0), 1);    }else if (x1 >= imgwidth){x = imgwidth - 1;   x1 = imgwidth - 1;// crop the patches of size MxNMat tiles = image_copy(Range(y, y+M), Range(x, imgwidth));//save each patches into file directoryimwrite("saved_patches/tile" + a + '_' + b + ".jpg", tiles);  rectangle(img, Point(x,y), Point(x1,y1), Scalar(0,255,0), 1);    }else{// crop the patches of size MxNMat tiles = image_copy(Range(y, y+M), Range(x, x+N));//save each patches into file directoryimwrite("saved_patches/tile" + a + '_' + b + ".jpg", tiles);  rectangle(img, Point(x,y), Point(x1,y1), Scalar(0,255,0), 1);    }}
}

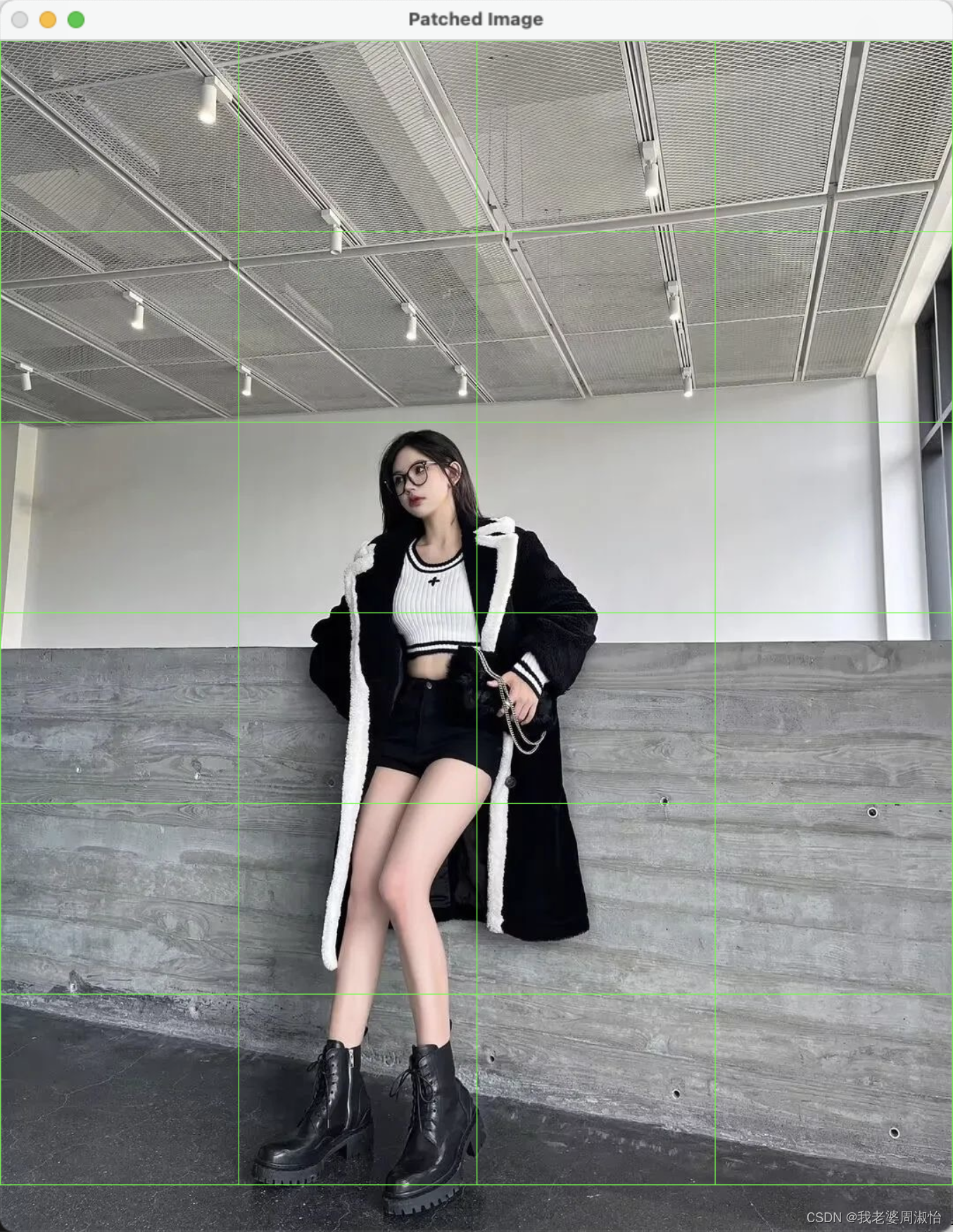

接下来，使用imshow()函数显示图像块拼图。使用imwrite()函数将其保存到文件目录中。

Python

#Save full image into file directory
cv2.imshow("Patched Image",img)
cv2.imwrite("patched.jpg",img)cv2.waitKey()
cv2.destroyAllWindows()

C++

imshow("Patched Image", img);
imwrite("patched.jpg",img);
waitKey();
destroyAllWindows();
