Introduction

本文将介绍如何使用LRU和FIFO实现页面置换的模拟（Python实现），并使用缺页率进行算法的评价。

Requirement

先附上具体的要求:

【实验目的】

（1）了解内存分页管理策略

（2）掌握调页策略

（3）掌握一般常用的调度算法

（4）学会各种存储分配算法的实现方法。

（5）了解页面大小和内存实际容量对命中率的影响。

【实验要求】

（1）采用页式分配存储方案，通过分别计算不同算法的命中率来比较算法的优劣，同时也考虑页面大小及内存实际容量对命中率的影响；

（2）实现LRU 算法 (Least Recently) 、 FIFO 算法 (First IN First Out)的模拟；

【实验原理】

分页存储管理将一个进程的逻辑地址空间分成若干大小相等的片，称为页面或页。
在进程运行过程中，若其所要访问的页面不在内存而需把它们调入内存，但内存已无空闲空间时，为了保证该进程能正常运行，系统必须从内存中调出一页程序或数据，送入磁盘的对换区中。但应将哪 个页面调出，须根据一定的算法来确定。通常，把选择换出页面的算法称为页面置换算法(Page_Replacement Algorithms)。

一个好的页面置换算法，应具有较低的页面更换频率。从理论上讲，应将那些以后不再会访问的页面换出，或将那些在较长时间内不会再访问的页面调出。

一、最佳置换算法OPT(Optimal)
它是由Belady于1966年提出的一种理论上的算法。其所选择的被淘汰页面，将是以后永不使用的或许是在最长(未来)时间内不再被访问的页面。采用最佳置换算法，通常可保证获得最低的缺页率。但由于人目前还无法预知一个进程在内存的若干个页面中，哪一个页面是未来最长时间内不再被访问的，因而该算法是无法实现的，便可以利用此算法来评价其它算法。

二、先进先出(FIFO)页面置换算法
这是最早出现的置换算法。该算法总是淘汰最先进入内存的页面，即选择在内存中驻留时间最久的页面予以淘汰。该算法实现简单只需把一个进程已调入内存的页面，按先后次序链接成一个队列，并设置一个指针，称为替换指针，使它总是指向最老的页面。

三、LRU(Least Recently Used)最近最久未使用置换算法
FIFO置换算法性能之所以较差，是因为它所依据的条件是各个页面调入内存的时间，而页面调入的先后并不能反映页面的使用情况。最近最久未使用（LRU）置换算法，是根据页面调入内存后的使用情况进行决策的。由于无法预测各页面将来的使用情况，只能利用“最近的过去”作为“最近的将来”的近似，因此，LRU置换算法是选择最近最久未使用的页面予以淘汰。该算法赋予每个页面一个访问字段，用来记录一个页面自上次被访问以来所经历的时间t,，当须淘汰一个页面时，选择现有页面中其t值最大的，即最近最久未使用的页面予以淘汰。

Solution

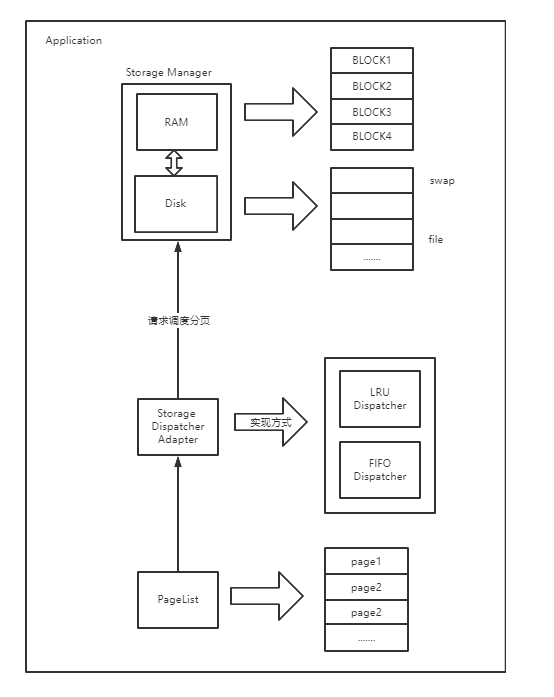

为了更好地处理数据，本例程封装了一个架构，对LRU、FIFO调度算法、内存等对象进行了对象化封装，详细架构如下图所示：

其中，PageList相当于一个页表，本例程中并没有引入多个页表进行调度配置，因为如果引入多个页表，则相当入还要引入PCB的进程调度，这不是本例程的重点，因此，本例程只采用一个页表进行调度，页表事实上就是一个PageList，里面封装的为单个page对象，如下所示。

StorageDispatcherAdapter为内存调度适配器，而LRUDispatcher和FIFODispatcher都是StorageDispatcherAdapter适配器的实现，通过实现LRUDispatcher或者FIFODispatcher算法，可以实现调度算法的无缝切换。

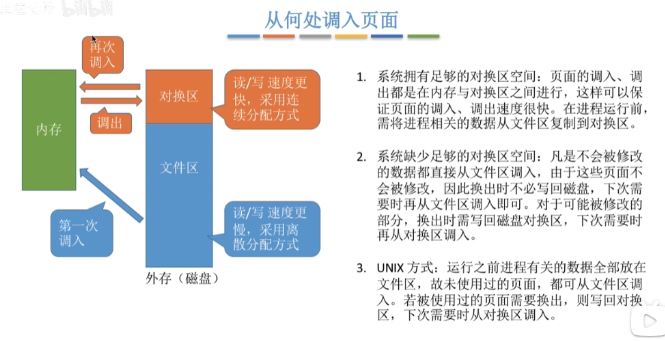

在分页存储管理中，因为引入了置换算法，所以在内存满了之后会存在某一些页面会被调出至外存中，因此在这里的内存模型本人参考了王道考研网课的一张PPT演示图，如下所示。

本例程将存储空间分为内存（本例程中为RAM）和磁盘空间，磁盘空间分为swap和文件区。当某一个页面需要调入内存使用时，先从swap和file中查找是否存在该页面，如果存在该页面，则使用页面置换算法将该页面置换进内存中，如果在swap和file中没有找到，则新建该分页存入内存。

因为本例程是以页面为基础的存储，因此RAM、DiskFile、DiskSwap都继承了StorageMedium类，继承了StorageMedium类之后，页面将以页面为最小单位进行存储介质间的置换和调度。

RAM和Disk都归StorageManger管理，最后由StorageDispatcherAdapter对StorageManger中的存储介质进行调度，StorageDispatcherAdapter中会记录系统运行过程中的调度情况。

最后就是实现LRU和FIFO的调度，StorageDispatcherAdapter中使用put()函数将页面传入StorageMangement管理的存储介质中。

LRU算法实现如下：

class LRUDispatcher(StorageDispatcherAdapter):""" LRUDispatcher is a dispatch util which can help Memory dispatch page and record dispatch process.  """def __init__(self):""" initialize some dispatch process info """self.page_queue: deque[int] = deque()self.missing_page_num = 0self.enter_ram_record: List[int] = []def put(self, storage_manager: StorageManager, page: Page):""" dispatch StorageManager's storage """storage_manager.print_ram()logging.debug("[page_queue] {0}".format(str(self.page_queue)))# judge page whether in ramif storage_manager.page_is_in_ram(page):logging.debug('page {0} in ram'.format(page.page_id))# fresh page_queueself.page_queue.remove(page.page_id)self.page_queue.appendleft(page.page_id)# not in ramelse:logging.debug('page {0} not in ram'.format(page.page_id))# read from disk (swap and file), swap firstif storage_manager.page_is_in_disk_swap(page):storage_manager.disk.swap.storage.remove(page.page_id)elif storage_manager.page_is_in_disk_file(page):storage_manager.disk.file.storage.remove(page.page_id)else:# first dispatch, then distribute space in ram# ram is full then eliminate the last pageif storage_manager.ram_is_full(self.page_queue):obsolete_page_id = self.page_queue.pop()block_id = storage_manager.ram.storage.index(obsolete_page_id)storage_manager.ram.storage[block_id] = page.page_idself.page_queue.appendleft(page.page_id)# store in swapif len(storage_manager.disk.swap.storage) < storage_manager.disk.swap.max_storage_space:storage_manager.disk.swap.storage.append(obsolete_page_id)# if swap is full then store in file of diskelse:storage_manager.disk.file.storage.append(obsolete_page_id)self._record_enter(page)else:# find the first page_id = -1 and storefor index, cur_page_id in enumerate(storage_manager.ram.storage):if cur_page_id == -1:storage_manager.ram.storage[index] = page.page_idself.page_queue.appendleft(page.page_id)self._record_enter(page)returndef _record_enter(self, page: Page):self.missing_page_num += 1self.enter_ram_record.append(page.page_id)

FIFO算法实现如下：

class FIFODispatcher(StorageDispatcherAdapter):""" FIFODispatcher is a dispatch util which can help Memory dispatch page and record dispatch process."""def __init__(self):""" initialize some dispatch process info """self.page_queue: deque[int] = deque()self.missing_page_num = 0self.enter_ram_record: List[int] = []def put(self, storage_manager: StorageManager, page: Page):""" dispatch StorageManager's storage """storage_manager.print_ram()logging.debug("[page_queue] {0}".format(str(self.page_queue)))# judge page whether in ramif storage_manager.page_is_in_ram(page):logging.debug('page {0} in ram'.format(page.page_id))# not in ramelse:logging.debug('page {0} not in ram'.format(page.page_id))# read from disk (swap and file), swap firstif storage_manager.page_is_in_disk_swap(page):storage_manager.disk.swap.storage.remove(page.page_id)elif storage_manager.page_is_in_disk_file(page):storage_manager.disk.file.storage.remove(page.page_id)else:# first dispatch, then distribute space in ram# ram is full then eliminate the last pageif storage_manager.ram_is_full(self.page_queue):obsolete_page_id = self.page_queue.pop()block_id = storage_manager.ram.storage.index(obsolete_page_id)storage_manager.ram.storage[block_id] = page.page_idself.page_queue.appendleft(page.page_id)# store in swapif len(storage_manager.disk.swap.storage) < storage_manager.disk.swap.max_storage_space:storage_manager.disk.swap.storage.append(obsolete_page_id)# if swap is full then store in file of diskelse:storage_manager.disk.file.storage.append(obsolete_page_id)self._record_enter(page)else:# find the first page_id = -1 and storefor index, cur_page_id in enumerate(storage_manager.ram.storage):if cur_page_id == -1:storage_manager.ram.storage[index] = page.page_idself.page_queue.appendleft(page.page_id)self._record_enter(page)returndef _record_enter(self, page: Page):self.missing_page_num += 1self.enter_ram_record.append(page.page_id)

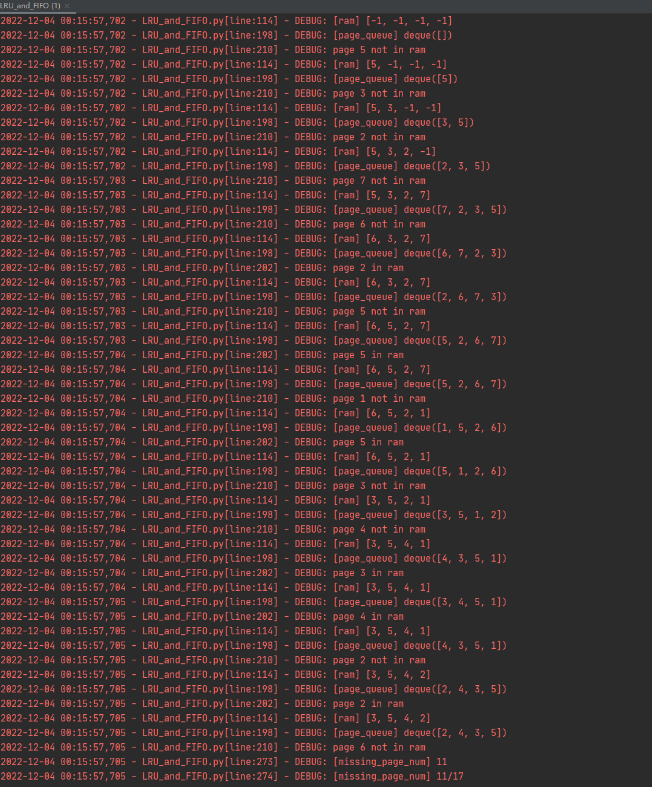

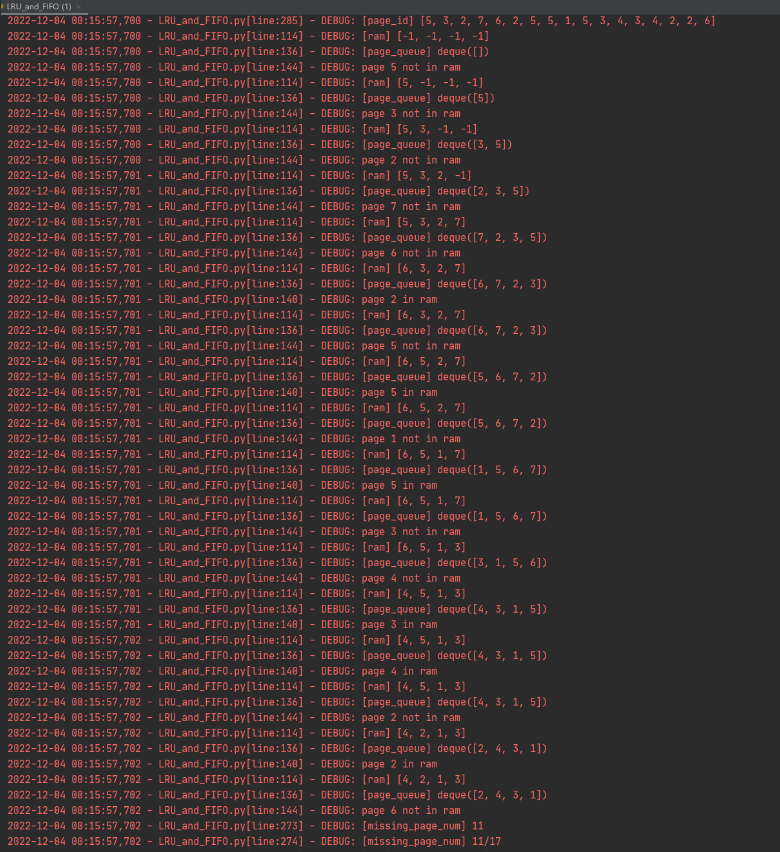

最后随机构建一些数据集，分别模拟测试LRU和FIFO的，结果如下所示。

事实上，在小范围的数据集测试，使用控制变量法，分别控制RAM大小、页表的长度、页面类型的数量测试了很多次之后，如果以缺页率作为评价指标，本人并没有得出明显的差别。本人推测可能是因为测试数据的问题，测试的数据集中页面id使用随机数生成，但是在实际的存储调度中，可能存在某些页面出现的次数特别多，如一次存储调度任务中50％都是在调度page_id=3的页面，这个时候LRU的优势才会逐渐显现出来，而基于随机数的测试集出现某些页面次数特别多的情况比较小，无法很好地测试出LRU的优势。

最终代码如下，不包含详细的数据集测试：

# -*- coding: utf-8 -*-
# @Time    : 2022/12/1 18:06
# @Author  : Zeeland
# @File    : LRU_and_FIFO.py
# @Software: PyCharm
import random
from typing import List
from collections import deque
import logging
import abclogging.basicConfig(level=logging.DEBUG, format='%(asctime)s - %(filename)s[line:%(lineno)d] - %(levelname)s: %(message)s')class Page:def __init__(self, page_id=None, time=None):self.page_id = page_id      # page idself.enter_time = time      # the time stamp of calling into memorydef __str__(self):return "[Page] page_id:{0}  time:{1}".format(self.page_id, self.enter_time)class StorageMedium:__meta_class__ = abc.ABCMetadef __init__(self):self.max_storage_space = Noneself.storage: List[int] = []class RAM(StorageMedium):""" RAM can storage memory block and every block can be dispatched by dispatcher. """def __init__(self, max_storage_space=4):super().__init__()self.max_storage_space = max_storage_space# store memory blockself.storage: List[int] = [-1 for _ in range(self.max_storage_space)]class DiskFile(StorageMedium):def __init__(self, max_storage_space=100):super().__init__()self.max_storage_space = max_storage_space# store memory blockself.storage: List[int] = [-1 for _ in range(self.max_storage_space)]class DiskSwap(StorageMedium):def __init__(self, max_storage_space=20):super().__init__()self.max_storage_space = max_storage_space# store memory blockself.storage: List[int] = [-1 for _ in range(self.max_storage_space)]class Disk:def __init__(self):self.swap = DiskSwap()self.file = DiskFile()class StorageManager:def __init__(self, ram_max_size=4):self.ram = Noneself.disk = Noneself.fresh_memory(ram_max_size)def fresh_memory(self, ram_max_size=4):self.ram = RAM(max_storage_space=ram_max_size)self.disk = Disk()def page_is_in_ram(self, page: Page) -> bool:""" return whether the page is in ram """try:self.ram.storage.index(page.page_id)return Trueexcept ValueError as e:return Falsedef page_is_in_disk(self, page: Page) -> bool:if self.page_is_in_disk_file(page) or self.page_is_in_disk_swap(page):return Trueelse:return Falsedef page_is_in_disk_swap(self, page: Page) -> bool:try:self.disk.swap.storage.index(page.page_id)return Trueexcept ValueError as e:return Falsedef page_is_in_disk_file(self, page: Page) -> bool:try:self.disk.file.storage.index(page.page_id)return Trueexcept ValueError as e:return Falsedef ram_is_full(self, page_dispatch_queue: deque = None) -> bool:if not page_dispatch_queue:for item in self.ram.storage:if item == -1:return Falsereturn Trueelse:if len(page_dispatch_queue) == self.ram.max_storage_space:return Trueelse:return Falsedef print_ram(self):logging.debug('[ram] ' + str(self.ram.storage))class StorageDispatcherAdapter:__meta_class__ = abc.ABCMetadef put(self, *args, **kwargs):passclass FIFODispatcher(StorageDispatcherAdapter):""" FIFODispatcher is a dispatch util which can help Memory dispatch page and record dispatch process."""def __init__(self):""" initialize some dispatch process info """self.page_queue: deque[int] = deque()self.missing_page_num = 0self.enter_ram_record: List[int] = []def put(self, storage_manager: StorageManager, page: Page):""" dispatch StorageManager's storage """storage_manager.print_ram()logging.debug("[page_queue] {0}".format(str(self.page_queue)))# judge page whether in ramif storage_manager.page_is_in_ram(page):logging.debug('page {0} in ram'.format(page.page_id))# not in ramelse:logging.debug('page {0} not in ram'.format(page.page_id))# read from disk (swap and file), swap firstif storage_manager.page_is_in_disk_swap(page):storage_manager.disk.swap.storage.remove(page.page_id)self._pop_and_store(storage_manager, page)elif storage_manager.page_is_in_disk_file(page):storage_manager.disk.file.storage.remove(page.page_id)self._pop_and_store(storage_manager, page)else:# first dispatch, then distribute space in ram# ram is full then eliminate the last pageif storage_manager.ram_is_full(self.page_queue):self._pop_and_store(storage_manager, page)else:# find the first page_id = -1 and storefor index, cur_page_id in enumerate(storage_manager.ram.storage):if cur_page_id == -1:storage_manager.ram.storage[index] = page.page_idself.page_queue.appendleft(page.page_id)self._record_enter(page)returndef _pop_and_store(self, storage_manager: StorageManager, page: Page):obsolete_page_id = self.page_queue.pop()block_id = storage_manager.ram.storage.index(obsolete_page_id)storage_manager.ram.storage[block_id] = page.page_idself.page_queue.appendleft(page.page_id)# store in swapif len(storage_manager.disk.swap.storage) < storage_manager.disk.swap.max_storage_space:storage_manager.disk.swap.storage.append(obsolete_page_id)# if swap is full then store in file of diskelse:storage_manager.disk.file.storage.append(obsolete_page_id)self._record_enter(page)def _record_enter(self, page: Page):self.missing_page_num += 1self.enter_ram_record.append(page.page_id)class LRUDispatcher(StorageDispatcherAdapter):""" LRUDispatcher is a dispatch util which can help Memory dispatch page and record dispatch process.  """def __init__(self):""" initialize some dispatch process info """self.page_queue: deque[int] = deque()self.missing_page_num = 0self.enter_ram_record: List[int] = []def put(self, storage_manager: StorageManager, page: Page):""" dispatch StorageManager's storage """storage_manager.print_ram()logging.debug("[page_queue] {0}".format(str(self.page_queue)))# judge page whether in ramif storage_manager.page_is_in_ram(page):logging.debug('page {0} in ram'.format(page.page_id))# fresh page_queueself.page_queue.remove(page.page_id)self.page_queue.appendleft(page.page_id)# not in ramelse:logging.debug('page {0} not in ram'.format(page.page_id))# read from disk (swap and file), swap firstif storage_manager.page_is_in_disk_swap(page):storage_manager.disk.swap.storage.remove(page.page_id)self._pop_and_store(storage_manager, page)elif storage_manager.page_is_in_disk_file(page):storage_manager.disk.file.storage.remove(page.page_id)self._pop_and_store(storage_manager, page)else:# first dispatch, then distribute space in ram# ram is full then eliminate the last pageif storage_manager.ram_is_full(self.page_queue):self._pop_and_store(storage_manager, page)else:# find the first page_id = -1 and storefor index, cur_page_id in enumerate(storage_manager.ram.storage):if cur_page_id == -1:storage_manager.ram.storage[index] = page.page_idself.page_queue.appendleft(page.page_id)self._record_enter(page)returndef _pop_and_store(self, storage_manager: StorageManager, page: Page):obsolete_page_id = self.page_queue.pop()block_id = storage_manager.ram.storage.index(obsolete_page_id)storage_manager.ram.storage[block_id] = page.page_idself.page_queue.appendleft(page.page_id)# store in swapif len(storage_manager.disk.swap.storage) < storage_manager.disk.swap.max_storage_space:storage_manager.disk.swap.storage.append(obsolete_page_id)# if swap is full then store in file of diskelse:storage_manager.disk.file.storage.append(obsolete_page_id)self._record_enter(page)def _record_enter(self, page: Page):self.missing_page_num += 1self.enter_ram_record.append(page.page_id)class Application:def __init__(self):self.page_list = self._page_list_init()self._print_page_list()self.storage_manager = StorageManager()self.storage_dispatcher = Nonedef run(self, method='LRU', page_list: List[Page] = None):if page_list is not None:self.page_list = page_listself.storage_manager.fresh_memory(ram_max_size=4)if method == 'LRU':self.storage_dispatcher = LRUDispatcher()elif method == 'FIFO':self.storage_dispatcher = FIFODispatcher()else:raise Exception("unknown dispatch method")# dispatch until endfor i in range(len(self.page_list)):self.storage_dispatcher.put(self.storage_manager, self.page_list[i])logging.debug("[missing_page_num] {0}".format(self.storage_dispatcher.missing_page_num))logging.debug("[missing_page_num] {0}/{1}".format(self.storage_dispatcher.missing_page_num, len(self.page_list)))return self.storage_dispatcher.missing_page_num / len(self.page_list)def _page_list_init(self, page_len=17):# temp_list = [2, 0, 5, 8, 2, 1, 3, 1, 6, 6, 5, 8, 2, 6, 1, 0, 6]# temp_list = [1, 0, 1, 0, 2, 4, 1, 0, 0, 8, 7, 5, 4, 3, 2, 3, 4]page_list: List[Page] = [Page(page_id=random.randint(0, 8), time=i + 1) for i in range(page_len)]# page_list: List[Page] = [Page(page_id=temp_list[i], time=i + 1) for i in range(page_len)]return page_listdef _print_page_list(self):logging.debug("[page_id] " + str(list(map(lambda item: item.page_id, self.page_list))))if __name__ == '__main__':app = Application()app.run(method='FIFO')app.run(method='LRU')
